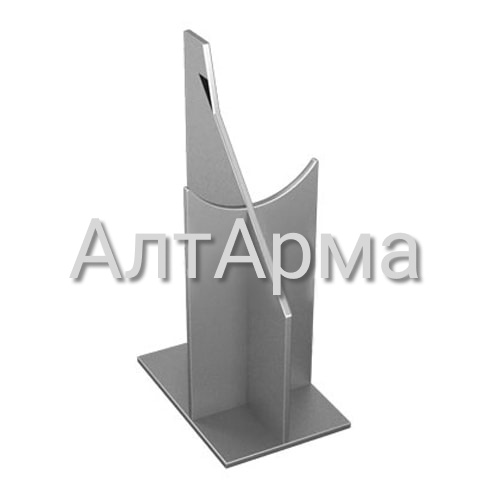

Обозначение опоры | Dн | Рис. | Допускаемая вертикальная нагрузка, кН (кгс) | Допускаемое осевое усилие Px при поперечном усилии Pz, кН (кгс) | R | H | H1 | L | B | j | S | K* | Масса, кг | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pz =" Px | Pz = "0,5Px | |||||||||||||
Л8-198.000 | 108 | 1 | 3,0 (300) | 2,5 (250) | 4,7 (470) | 305 | 100 | 311 | 120 | 80 | 38 | 6 | 4 | 3,20 |
Л8-198.000-01 | 133 | 1 | 4,0 (400) | 3,7 (370) | 4,8 (480) | 320 | 100 | 321 | 130 | 100 | 42 | 6 | 4 | 3,60 |
Л8-198.000-02 | 159 | 1 | 5,0 (500) | 4,4 (440) | 6,7 (670) | 330 | 100 | 336 | 140 | 110 | 42 | 6 | 4 | 3,90 |
Л8-198.000-03 | 219 | 1 | 10,0 (1000) | 8,0 (800) | 8,3 (830) | 360 | 100 | 373 | 160 | 170 | 54 | 8 | 6 | 6,40 |
Л8-198.000-04 | 273 | 1 | 15,0 (1500) | 11,6 (1160) | 13,0 (1300) | 410 | 100 | 413 | 180 | 170 | 56 | 8 | 6 | 8,70 |
Л8-198.000-05 | 325 | 1 | 20,0 (2000) | 20,0 (2000) | 21,0 (2100) | 490 | 100 | 477 | 210 | 210 | 52 | 12 | 10 | 16,00 |
Л8-198.000-06 | 377 | 1 | 25,0 (2500) | 20,0 (2000) | 24,0 (2400) | 570 | 100 | 532 | 230 | 210 | 58 | 12 | 10 | 19,00 |
Л8-198.000-07 | 426 | 1 | 30,0 (3000) | 27,0 (2700) | 30,0 (3000) | 640 | 100 | 596 | 270 | 250 | 72 | 16 | 12 | 27,00 |
Л8-198.000-08 | 530 | 1 | 40,0 (4000) | 35,0 (3500) | 38,0 (3800) | 800 | 100 | 711 | 330 | 310 | 80 | 16 | 12 | 39,00 |
Л8-198.000-09 | 530 | 2 | 40,0 (4000) | 40,0 (4000) | 68,0 (6800) | 530 | 100 | 516 | 300 | 300 | 70 | 16 | 14 | 36,00 |
Л8-198.000-10 | 630 | 3 | 50,0 (5000) | 55,0 (5500) | 93,0 (9300) | 950 | 100 | 1016 | 550 | 360 | 105 | 16 | 14 | 112,00 |
Л8-198.000-11 | 630 | 2 | 50,0 (5000) | 62,0 (6200) | 90,0 (9000) | 630 | 100 | 616 | 350 | 360 | 65 | 16 | 14 | 56,00 |
Л8-198.000-12 | 720 | 3 | 62 ,0 (6200) | 83,0 (8300) | 140,0 (14000) | 1080 | 100 | 1116 | 620 | 400 | 125 | 16 | 14 | 146,00 |
Л8-198.000-13 | 720 | 2 | 62,0 (6200) | 95,0 (9500) | 136,0 (13600) | 720 | 100 | 666 | 400 | 400 | 60 | 16 | 14 | 77,00 |
Л8-198.000-14 | 820 | 3 | 80,0 (8000) | 95,0 (9500) | 160,0 (16000) | 1230 | 100 | 1266 | 700 | 450 | 140 | 16 | 14 | 187,00 |
Л8-198.000-15 | 820 | 2 | 80,0 (8000) | 109,0 (10900) | 157,0 (15700) | 820 | 100 | 766 | 460 | 450 | 80 | 16 | 14 | 99,00 |
Л8-198.000-16 | 1020 | 3 | 124,0 (12400) | 119,0 (11900) | 203,0 (20300) | 1530 | 100 | 1516 | 850 | 550 | 175 | 16 | 14 | 268,00 |
Л8-198.000-17 | 1020 | 2 | 124,0 (12400) | 133,0 (13300) | 191,0 (19100) | 1020 | 100 | 916 | 558 | 550 | 75 | 16 | 14 | 146,00 |
Л8-198.000-18 | 1220 | 3 | 167,0 (16700) | 142,0 (14200) | 243,0 (24300) | 1830 | 100 | 1765 | 1008 | 650 | 205 | 16 | 14 | 381,00 |
Л8-198.000-19 | 1220 | 2 | 167,0 (16700) | 170,0 (17000) | 254,0 (25400) | 1220 | 100 | 1116 | 670 | 650 | 100 | 16 | 14 | 216,00 |
Л8-198.000-20 | 1420 | 3 | 210,0 (21000) | 173,0 (17300) | 294,0 (29400) | 2130 | 100 | 2016 | 1150 | 760 | 235 | 16 | 14 | 566,00 |
Л8-198.000-21 | 1420 | 2 | 210,0 (21000) | 204,0 (20400) | 304,0 (30400) | 1420 | 100 | 1266 | 760 | 760 | 130 | 16 | 14 | 273,00 |
Обозначение косынки | Для отводов | Рис. | H | h | h1 | h2 | L | j | j1 | j2 | C | S*=r | Масса, кг | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dн* | R | |||||||||||||
Л8-198.001 | 108 | 305 | 1 | 303 | 159 | 92 | - | 120 | 92 | 22 | - | - | 8 | 2,00 |
Л8-198.001-01 | 133 | 320 | 1 | 315 | 163 | 99 | - | 130 | 99 | 22 | - | - | 8 | 2,00 |
Л8-198.001-02 | 159 | 330 | 1 | 330 | 167 | 106 | - | 140 | 106 | 24 | - | - | 8 | 2,00 |
Л8-198.001-03 | 219 | 360 | 1 | 365 | 174 | 123 | - | 160 | 123 | 28 | - | - | 10 | 3,00 |
Л8-198.001-04 | 273 | 410 | 1 | 405 | 175 | 145 | - | 180 | 145 | 32 | - | - | 10 | 4,00 |
Л8-198.001-05 | 325 | 490 | 1 | 465 | 210 | 161 | - | 210 | 161 | 40 | - | - | 12 | 6,00 |
Л8-198.001-06 | 377 | 570 | 1 | 520 | 239 | 176 | - | 230 | 176 | 44 | - | - | 12 | 8,00 |
Л8-198.001-07 | 426 | 640 | 1 | 580 | 241 | 218 | - | 270 | 244 | 52 | - | - | 12 | 10,00 |
Л8-198.001-08 | 530 | 800 | 1 | 695 | 283 | 363 | - | 330 | 263 | 62 | - | - | 12 | 14,00 |
Л8-198.001-09 | 530 | 530 | 2 | 500 | 176 | 30 | 225 | 340 | 73 | 225 | 29 | 73 | 12 | 9,00 |
Л8-198.001-10 | 630 | 950 | 2 | 1000 | 237 | 41 | 356 | 620 | 98 | 356 | 152 | 98 | 12 | 47,00 |
Л8-198.001-11 | 630 | 630 | 2 | 600 | 196 | 34 | 267 | 410 | 81 | 267 | 43 | 81 | 12 | 17,00 |
Л8-198.001-12 | 720 | 1080 | 2 | 1100 | 259 | 44 | 404 | 690 | 107 | 404 | 163 | 107 | 16 | 48,00 |
Л8-198.001-13 | 720 | 720 | 2 | 650 | 213 | 36 | 303 | 450 | 88 | 305 | 40 | 88 | 16 | 21,00 |
Л8-198.001-14 | 820 | 1230 | 2 | 1250 | 186 | 49 | 461 | 785 | 118 | 461 | 188 | 118 | 16 | 62,00 |
Л8-198.001-15 | 820 | 820 | 2 | 750 | 232 | 40 | 348 | 520 | 96 | 348 | 54 | 96 | 16 | 28,00 |
Л8-198.001-16 | 1020 | 1530 | 2 | 1500 | 337 | 58 | 574 | 950 | 140 | 574 | 220 | 140 | 16 | 89,00 |
Л8-198.001-17 | 1020 | 1020 | 2 | 902 | 271 | 46 | 430 | 620 | 112 | 430 | 63 | 112 | 16 | 39,00 |
Л8-198.001-18 | 1220 | 1830 | 2 | 1750 | 389 | 67 | 687 | 1120 | 161 | 687 | 251 | 161 | 16 | 124,00 |
Л8-198.001-19 | 1220 | 1220 | 2 | 1100 | 310 | 53 | 518 | 760 | 129 | 518 | 91 | 129 | 16 | 66,00 |
Л8-198.001-20 | 1420 | 2130 | 2 | 2000 | 443 | 76 | 800 | 1290 | 184 | 800 | 282 | 183 | 16 | 222,00 |
Л8-198.001-21 | 1420 | 1420 | 2 | 1250 | 350 | 60 | 602 | 870 | 145 | 602 | 99 | 145 | 16 | 75,00 |
Обозначение ребра | Для отводов | a | a1 | a2 | a3 | a4 | a5 | a6 | h | h1 | h2 | h3 | h4 | h5 | h6 | S* | C | Масса, кг | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dн* | R | ||||||||||||||||||
Л8-198.002 | 108 | 305 | 36 | 8 | 13 | 17 | 20 | 23 | 25 | 220 | 2 | 4 | 6 | 8 | 10 | 12 | 6 | 6 | 0,40 |
Л8-198.002-01 | 133 | 320 | 46 | 13 | 19 | 24 | 29 | 32 | 35 | 232 | 3 | 6 | 9 | 12 | 15 | 18 | 6 | 6 | 0,50 |
Л8-198.002-02 | 159 | 330 | 51 | 15 | 22 | 28 | 33 | 37 | 40 | 242 | 3 | 6 | 9 | 12 | 15 | 18 | 6 | 6 | 0,60 |
Л8-198.002-03 | 219 | 360 | 65 | 20 | 30 | 37 | 43 | 40 | 54 | 260 | 4 | 8 | 12 | 16 | 20 | 24 | 8 | 8 | 1,00 |
Л8-198.002-04 | 273 | 410 | 80 | 26 | 38 | 48 | 56 | 62 | 68 | 295 | 5 | 10 | 15 | 20 | 25 | 30 | 8 | 8 | 1,40 |
Л8-198.002-05 | 325 | 490 | 99 | 31 | 46 | 57 | 66 | 74 | 81 | 344 | 6 | 12 | 18 | 24 | 30 | 36 | 12 | 12 | 3,00 |
Л8-198.002-06 | 377 | 570 | 99 | 34 | 50 | 62 | 72 | 81 | 89 | 382 | 6 | 12 | 18 | 24 | 30 | 36 | 12 | 12 | 3,40 |
Л8-198.002-07 | 426 | 640 | 117 | 40 | 58 | 72 | 84 | 94 | 101 | 412 | 7 | 14 | 21 | 28 | 35 | 42 | 12 | 12 | 4,50 |
Л8-198.002-08 | 530 | 800 | 142 | 50 | 73 | 90 | 104 | 115 | 127 | 496 | 15 | 31 | 46 | 62 | 77 | 95 | 12 | 12 | 6,00 |
Л8-198.002-09 | 530 | 530 | 142 | 50 | 73 | 90 | 104 | 115 | 127 | 400 | 8 | 17 | 25 | 34 | 42 | 50 | 12 | 12 | 5,00 |
Л8-198.002-10 | 630 | 950 | 172 | 61 | 88 | 108 | 124 | 139 | 152 | 1000 | 18 | 37 | 55 | 74 | 92 | 100 | 12 | 12 | 15,40 |
Л8-198.002-11 | 630 | 630 | 172 | 61 | 88 | 108 | 124 | 139 | 152 | 480 | 10 | 20 | 30 | 40 | 50 | 60 | 12 | 12 | 7,30 |
Л8-198.002-12 | 720 | 1080 | 190 | 68 | 99 | 122 | 141 | 157 | 172 | 1140 | 21 | 42 | 63 | 84 | 105 | 126 | 16 | 16 | 25,80 |
Л8-198.002-13 | 720 | 720 | 190 | 68 | 99 | 122 | 141 | 157 | 172 | 540 | 11 | 23 | 34 | 46 | 57 | 68 | 16 | 16 | 12,00 |
Л8-198.002-14 | 820 | 1250 | 215 | 79 | 114 | 140 | 162 | 180 | 197 | 1280 | 24 | 48 | 72 | 96 | 120 | 144 | 16 | 16 | 33,00 |
Л8-198.002-15 | 820 | 820 | 215 | 79 | 114 | 140 | 162 | 180 | 197 | 600 | 13 | 26 | 39 | 52 | 65 | 78 | 16 | 16 | 15,00 |
Л8-198.002-16 | 1020 | 1530 | 265 | 100 | 144 | 175 | 203 | 226 | 247 | 1570 | 30 | 60 | 90 | 120 | 149 | 179 | 16 | 16 | 50,00 |
Л8-198.002-17 | 1020 | 1020 | 265 | 100 | 144 | 175 | 203 | 226 | 247 | 750 | 16 | 32 | 48 | 64 | 80 | 97 | 16 | 16 | 23,00 |
Л8-198.002-18 | 1220 | 1830 | 315 | 122 | 175 | 212 | 245 | 272 | 297 | 1850 | 35 | 71 | 105 | 142 | 177 | 214 | 16 | 16 | 69,00 |
Л8-198.002-19 | 1220 | 1220 | 315 | 122 | 175 | 212 | 245 | 272 | 297 | 880 | 19 | 38 | 58 | 77 | 97 | 116 | 16 | 16 | 32,60 |
Л8-198.002-20 | 1420 | 2130 | 320 | 143 | 203 | 248 | 286 | 318 | 347 | 2140 | 41 | 83 | 124 | 166 | 207 | 249 | 16 | 16 | 94,00 |
Л8-198.002-21 | 1420 | 1420 | 320 | 143 | 203 | 248 | 286 | 318 | 347 | 1000 | 22 | 45 | 67 | 90 | 112 | 135 | 16 | 16 | 43,00 |
Обозначение седла | Для отводов | B | H | h | R1 | S* | Масса, кг | |
---|---|---|---|---|---|---|---|---|
Dн* | R | |||||||
Л8-198.003 | 530 | 530 | 318 | 285 | 182 | 266 | 12 | 6,00 |
Л8-198.003-01 | 630 | 950 | 360 | 300 | 246 | 316 | 12 | 9,00 |
Л8-198.003-02 | 630 | 630 | 360 | 265 | 204 | 316 | 12 | 8,00 |
Л8-198.003-03 | 720 | 1080 | 400 | 325 | 272 | 362 | 16 | 15,00 |
Л8-198.003-04 | 720 | 720 | 400 | 275 | 222 | 362 | 16 | 12,00 |
Л8-198.003-05 | 820 | 1230 | 450 | 360 | 300 | 412 | 16 | 19,00 |
Л8-198.003-06 | 820 | 820 | 450 | 300 | 242 | 412 | 16 | 15,00 |
Л8-198.003-07 | 1020 | 1530 | 550 | 430 | 355 | 514 | 16 | 20,00 |
Л8-198.003-08 | 1020 | 1020 | 550 | 360 | 285 | 514 | 16 | 23,00 |
Л8-198.003-09 | 1220 | 1830 | 650 | 500 | 412 | 614 | 16 | 37,00 |
Л8-198.003-10 | 1220 | 1220 | 650 | 420 | 335 | 614 | 16 | 30,00 |
Л8-198.003-11 | 1420 | 2130 | 760 | 590 | 470 | 714 | 16 | 50,00 |
Л8-198.003-12 | 1420 | 1420 | 760 | 470 | 370 | 714 | 16 | 40,00 |
Обозначение основания | L | B | S* | Масса, кг |
---|---|---|---|---|
Л8-198.004 | 120 | 80 | 6 | 0,40 |
Л8-198.004-01 | 130 | 100 | 6 | 0,60 |
Л8-198.004-02 | 140 | 110 | 6 | 0,70 |
Л8-198.004-03 | 160 | 140 | 8 | 1,40 |
Л8-198.004-04 | 180 | 170 | 8 | 1,90 |
Л8-198.004-05 | 210 | 210 | 12 | 4,10 |
Л8-198.004-06 | 230 | 210 | 12 | 4,50 |
Л8-198.004-07 | 270 | 250 | 12 | 8,50 |
Л8-198.004-08 | 330 | 310 | 16 | 12,80 |
Л8-198.004-09 | 300 | 300 | 16 | 11,00 |
Л8-198.004-10 | 550 | 360 | 16 | 24,80 |
Л8-198.004-11 | 360 | 360 | 16 | 16,00 |
Л8-198.004-12 | 620 | 400 | 16 | 31,00 |
Л8-198.004-13 | 400 | 400 | 16 | 20,00 |
Л8-198.004-14 | 700 | 450 | 16 | 39,50 |
Л8-198.004-15 | 460 | 450 | 16 | 26,00 |
Л8-198.004-16 | 850 | 550 | 16 | 59,00 |
Л8-198.004-17 | 550 | 550 | 16 | 38,00 |
Л8-198.004-18 | 1000 | 650 | 16 | 82,00 |
Л8-198.004-19 | 670 | 650 | 16 | 55,00 |
Л8-198.004-20 | 1150 | 760 | 16 | 110,00 |
Л8-198.004-21 | 760 | 760 | 16 | 72,00 |
Л8-198.004-22 | 200 | 200 | 10 | 31,00 |
Л8-198.004-23 | 250 | 250 | 10 | 49,00 |
Л8-198.004-24 | 300 | 300 | 10 | 70,00 |
Л8-198.004-25 | 300 | 400 | 10 | 94,00 |
Таблица размеров
